Staff.InstrumentName.self-alignment-X
property.
The \layout
variables indent
and short-indent
define the space in which the instrument names are aligned before the
first and the following systems, respectively.
What's this? Searching the LSR Browse by title Contributing Snippet database | Browsing items 170−179 out of 940 |
In 20th century music, where time signatures tend to change a lot, it is
sometimes recommended to put the time signatures on top of the score (or above
each StaffGroup
in the case of an orchestral score). This can be achieved by
creating a dummy staff which only contains the Time_signature_engraver
.
In this specific example, a separate identifier is used to define every time signature change, which saves the bother of entering them again when typing the actual music (careful though: it makes getting lost easier!).
Notice the overriding of the X-offset
property: a specific trick to make the
time signatures align with the barlines, thanks to Han-Wen.

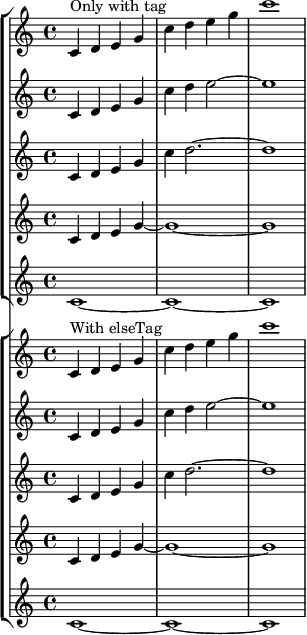

The purpose of the \elseTag command is to make the use of tagged music easier.
This exemple shows the same music, without and with \elseTag.
In the old manner (first exemple), you have to write all the tag names you want,and to omit only the one you don't want.
In the second exemple, \elseTag exclude automatically the tag you don't want, and keep all the others.
\elseTag has the same syntaxe than \tag and has to be use in conjonction with \keepWithTag.
When working with grob callbacks, it can be helpful to understand a grob's ancestry. Most grobs have parents which influence the positioning of the grob. X- and Y-parents influence the horizontal and vertical positions for the grob, respectively. Additionally, each parent may have parents of its own.
Unfortunately, there are several aspects of a grob's ancestry that can lead to confusion:
For example, the System
grob can be both parent (on the Y-side) and grandparent (twice on the X-side) to a VerticalAlignment
grob.
This macro prints (to the console) a textual representation of a grob's ancestry.
When called this way:
{ \once \override NoteHead.before-line-breaking = #display-ancestry c }
The following output is generated:
NoteHead X,Y: NoteColumn X: PaperColumn X,Y: System Y: VerticalAxisGroup X: NonMusicalPaperColumn X,Y: System Y: VerticalAlignment X: NonMusicalPaperColumn X,Y: System Y: System
\extractMusic
function that can be used as follows:
\extractMusic music from during
For example, in the second Staff of the score below, the following has been used :
\extractMusic \music s1 s1*2
This has kept the music beginning after the first measure (i.e., at the second measure) for two measures.
\override
s) outside this range have been deleted.
Note that this function should also work with multiple voices, \repeat
structures etc.
A full and updated version of \extractMusic
can be found here.
There are some additional useful features and other enhancement functions on that page, with a description of each of them in a small document (in pdf format) with multiple voices, \repeat
structures etc.
